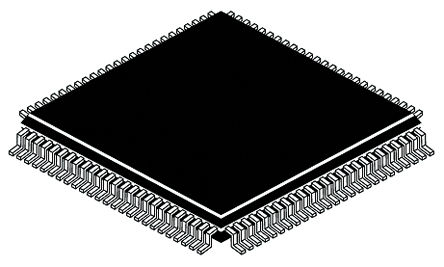

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The F2806x Piccolo family of microcontrollers (MCUs) provides the power of the C28x core and CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration.
- An internal voltage regulator allows for single-rail operation. Enhancements have been made to the High-Resolution Pulse Width Modulator (HRPWM) module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the ePWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.
TMS320F28062PZT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Frequency | 90 MHz |
| Clock Speed | 90.0 MHz |
| RAM Memory Size | 26K x 16 |
| FLASH Memory Size | 131072 B |
| Number of UARTs | 2 UART |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 3 DAC |
| Show | |
| Size-Length | 14.2 mm |
| Size-Width | 14.2 mm |
| Size-Height | 1.45 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
