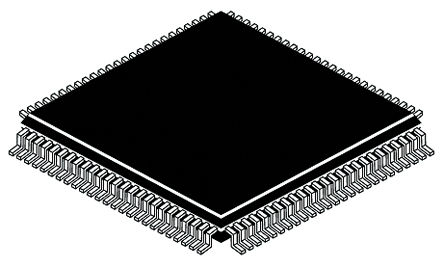

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TMS320F28069PZT is a Piccolo™ Microcontroller that provides the power of the C28x core and CLA coupled with highly integrated control peripherals in low pin-count devices. This is code-compatible with previous C28x-based code and also provides a high level of analogue integration. An internal voltage regulator allows for single-rail operation. Enhancements have been made to the High-Resolution Pulse Width Modulator (HRPWM) module to allow for dual-edge control (frequency modulation). Analogue comparators with internal 10-bit references have been added and can be routed directly to control the ePWM outputs. The ADC converts from 0 to 3.3V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.
- High efficiency
- Native single-precision floating-point operations
- Programmable control law accelerator (CLA)
- 6-channel Direct memory access (DMA)
- No power sequencing requirement
- Low-power operating modes
- On-chip crystal oscillator/external clock input
- Peripheral interrupt expansion (PIE) block that supports all peripheral interrupts
- Up to 8 enhanced pulse-width modulator (ePWM) modules
- Three input enhanced capture (eCAP) modules
- Up to 2 enhanced quadrature encoder pulse (eQEP) modules
- Up to 4 high-resolution capture (HRCAP) modules
- On-chip temperature sensor
- Green product and no Sb/Br
- IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
TMS320F28069PZT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Frequency | 90 MHz |
| Supply Voltage (DC) | 1.71V (min) |
| Operating Voltage | 1.71V ~ 1.995V |
| Number of Positions | 100 Position |
| Clock Speed | 90.0 MHz |
| RAM Memory Size | 100 KB |
| Number of Bits | 32 Bit |
| FLASH Memory Size | 128 KB |
| Number of UARTs | 2 UART |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 54 Input IO |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 3 DAC |
| Supply Voltage (Max) | 3.63 V |
| Supply Voltage (Min) | 2.97 V |
| Show | |
| Size-Length | 14.2 mm |
| Size-Width | 14.2 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
