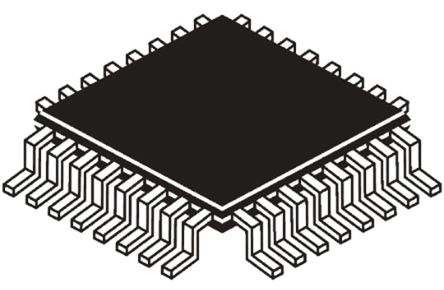

Image is for your reference only,please check specifications for details

TPA3106D1VFPR - TI
Manufacturer:
TI
ManyChip's Part#:
MC8529926
Category:
Audio Amplifier IC
Package:
HLQFP-32
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPA3106D1VFPR Audio Power Amplifier, D, 1Channel, 40W, 10V to 26V, HLQFP, 32Pins
Stock Locations:
Availability:
1,021 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.84

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA3106D1VFPR is a 40W Mono Class-D Audio Power Amplifier for driving bridged-tied stereo speaker. The TPA3106D1 can drive stereo speakers as low as 4. The high efficiency ~92% of the TPA3106D1 eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36dB. The outputs are fully protected against shorts to GND, VCC and output-to-output shorts with an auto recovery feature and monitor output. It uses a modulation scheme that still has each output switching from 0 to the supply voltage. However, OUTP and OUTN are now in phase with each other with no input. The duty cycle of OUTP is greater than 50% and OUTN is less than 50% for positive output voltages.
40W into an 8R load from a 25V supply
Efficient Class-D operation eliminates the need for heat sinks
Four selectable, fixed gain settings
Differential inputs
Thermal and short-circuit protection with auto recovery feature
Clock output for synchronization with multiple Class-D devices
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPA3106D1VFPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	HLQFP-32
Number of Channels	1 Channel
Number of Positions	32 Position
Power Dissipation	3570 mW
Output Power	40 W
Gain	36 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3570 mW
Supply Voltage	10V ~ 26V
Supply Voltage (Max)	26 V
Supply Voltage (Min)	10 V
	Show
Size-Length	7.2 mm
Size-Width	7 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
