- AD5443YRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC417395
-
Category:Digital to Analog, DAC IC
-
Package:MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD5443YRMZ Digital to Analog Converter, 12Bit, 2.5MSPS, Serial, 3V to 5.5V, SOP, 10Pins
-
Stock Locations:
-
Availability:211 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 22.19
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

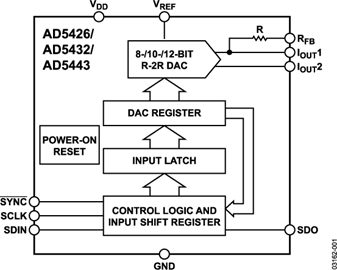

- The AD5443YRMZ is a CMOS 12-bit current output Digital-to-analog Converter (DAC) operates from a 2.5 to 5.5V power supply, making it suitable for battery-powered applications and many other applications. This DAC uses a double buffered, 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE and most DSP interface standards. Data read-back allows the user to read the contents of the DAC register via the SDO pin. On power-up, the internal shift register and latches are filled with 0s and the DAC outputs are at zero scale. As a result of manufacturing on a CMOS submicron process, the parts offer excellent 4-quadrant multiplication characteristics with large signal multiplying bandwidths of 10MHz. The applied external reference input voltage VREF determines the full-scale output current. An integrated feedback resistor RFB provides temperature tracking and full-scale voltage output when combined with an external current to voltage precision amplifier.
- Low glitch energy <2nV-s
- Pin-compatible 12-bit current output DAC
- Guaranteed monotonic
- Power-on reset with brownout detection
- Daisy-chain mode
AD5443YRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | MSOP-10 |
| Supply Voltage (DC) | 5.50V (max) |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Positions | 10 Position |
| Number of Bits | 12 Bit |
| Power Dissipation | 3.00 µW |
| Sample Rate | 2.5 Msps |
| Resolution (Bits) | 12.0 Bit |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage | 3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
