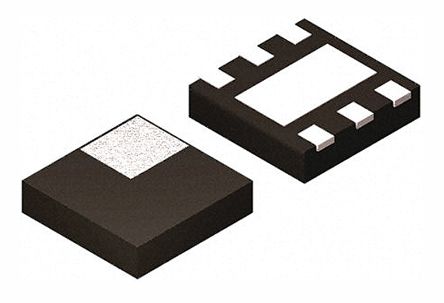

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPD4E004DRYR is a 4-channel ESD-protection Array for high-speed data interfaces. It is designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steers ESD current pulses to VCC or GND. The TPD4E004 protects against ESD pulses up to ±15kV human-body model (HBM), ±8kV contact discharge and ±12kV air-gap discharge, as specified in IEC 61000-4-2. This device has a 1.6pF capacitance per channel, making it ideal for use in high-speed data IO interfaces.
- 500nA Supply current
TPD4E004DRYR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | UFDFN-6 |
| Operating Voltage | 800 mV |
| Capacitance | 2 pF |
| Breakdown Voltage | 6 V |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 6 Position |
| Min Breakdown Voltage | 6 V |
| Reverse Breakdown Voltage | 6 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 1.45 mm |
| Size-Width | 1 mm |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
