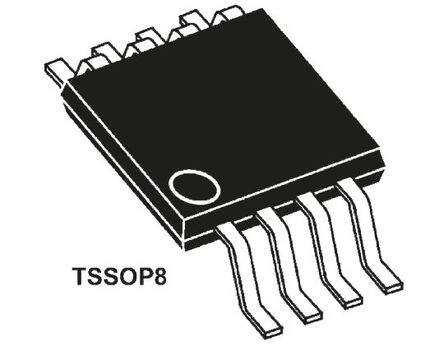

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS2375PW is an IEEE 802.3af PoE Powered Device Controller contains all of the features needed to develop an IEEE 802.3af compliant powered device (PD). The TPS2375 family is a second generation PDC (PD controller) featuring 100V ratings and a true open-drain, power-good function. In addition to the basic functions of detection, classification and undervoltage lockout (UVLO), this includes an adjustable inrush limiting feature. The TPS2375 has 802.3af compliant UVLO limits, this family specifications incorporate a voltage offset of 1.5V between its limits and the IEEE 802.3af specifications to accommodate the required input diode bridges used to make the PD polarity insensitive.
15kV System level ESD capable
Supports use of silicon rectifiers
Programmable inrush current control
Fixed 450mA Current limit
Open-drain, power-good reporting
Overtemperature protection
Green product and no Sb/Br

Show

TPS2375PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	48.0 V
Input Voltage (DC)	57.0 V
Supply Current	240 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	57 V
Input Voltage (Min)	0 V
Input Power (Max)	13 W
Input Power (Max)	12.95 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0V ~ 57V
Input Voltage	57 V
	Show
Size-Length	3 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
