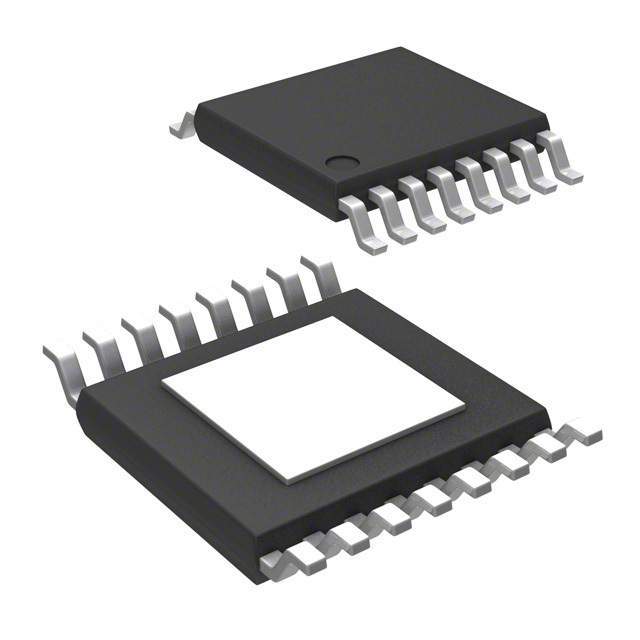

Image is for your reference only,please check specifications for details
- TPS40057PWPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC797559
-
Category:Voltage Regulators
-
Package:HTSSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:DC-DC-контроллер (внешний переключатель) с широким диапазоном входных напряжений от 8 В до 40 В и частотой до 1 МГц. Синхронный контроллер типа “бук”, с возможностью управления источником/потребителем энергии с предварительным биазированием. Один выход, способный работать при напряжении от 0,7 до 35 В. Контроллер имеет частоту переключения 1000 кГц. Упаковка в формате HTSSOP EP T/R обеспечивает безопасную доставку и быструю установку компонентов. Диапазон рабочих температур составляет от -40 °C до 85 °C.
-
Stock Locations:
-
Availability:1,246 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.88
Updated at 01/11/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Нужно ли увеличивать или уменьшать напряжение с одного уровня на другой? Контроллер DC-напряжения TPS40057PWPR от Texas Instruments позволяет выполнить именно это. У этого контроллера один выход, а его напряжение может варьироваться от 0,7 до 35 В. Это оптимальный решение для управления энергией. Входное напряжение составляет от 8 до 40 В. Частота переключения — 1000 кГц. Упаковка в формате “таpe and reel” обеспечивает безопасную доставку и быструю установку компонентов. Диапазон рабочих температур составляет от -40 °C до 85 °C.
TPS40057PWPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 16 Pin |
| Case/Package | HTSSOP-16 |
| Supply Voltage (DC) | 8.00V (min) |
| Number of Outputs | 1 Output |
| Output Voltage | 0.7V ~ 35V |
| Output Current | 20.0 A |
| Number of Positions | 16 Position |
| Quiescent Current | 1.50 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 1MHz (MAX) |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Duty Cycle | 94 % |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 8 V |
| Maximum Duty Cycle | 94 % |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 40V |
| Supply Voltage (Max) | 40 V |
| Supply Voltage (Min) | 8 V |
| Input Voltage | 8V ~ 40V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
