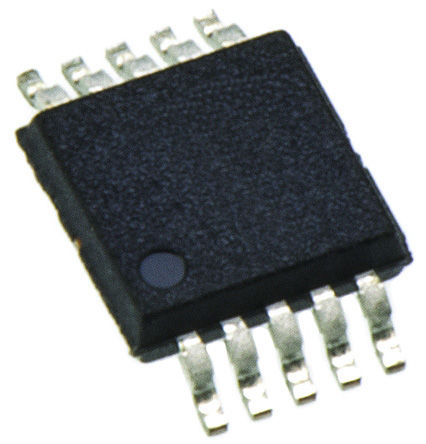

TPS51100DGQR - TI
Manufacturer:
TI
ManyChip's Part#:
MC2748364
Category:
Voltage Regulator
Package:
PowerPad-MSOP-10
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO 3A Source/Sink DDR terminator Regulator LDO Regulator Neg/Pos -0.1V to 3.6V 3A 10Pin HVSSOP EP T/R
Stock Locations:
Availability:
1,227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.56

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS51100DGQR is a 3A sink and source double-data-rate (DDR) Terminator Regulator. The device maintains fast transient response, only requiring 20µF (2 x 10µF) of ceramic output capacitance. The device supports remote sensing functions and all features required to power the DDR and DDR2 VTT bus termination according to the JEDEC specification. The device also supports DDR3 VTT termination with VDDQ at 1.5V (typical). In addition, the device includes integrated sleep-state controls, placing VTT in Hi-Z in S3 (suspend to RAM) and soft-OFF for VTT and VTTREF in S5 (suspend to disk).
3A Sink and source termination regulator Includes droop compensation
1.2V Input (VLDOIN) helps reduce total power dissipation
Integrated divider tracks 0.5 VDDQSNS for VTT and VTTREF
Remote sensing (VTTSNS)
±20mV Accuracy for VTT and VTTREF
10mA Buffered reference (VTTREF)
Built-in soft-start, UVLO and OCL
Thermal shutdown
Supports JEDEC specifications
Green product and no Sb/Br

Show

TPS51100DGQR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	PowerPad-MSOP-10
Number of Outputs	1 Output
Output Voltage	1.2V ~ 3.6V
Output Current	3 A
Number of Positions	10 Position
Power Dissipation	1.73 W
Quiescent Current	500 µA
Output Capacitor Type	Ceramic
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.25 V
Input Voltage (Min)	4.75 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1730 mW
Input Voltage	4.75V ~ 5.25V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
