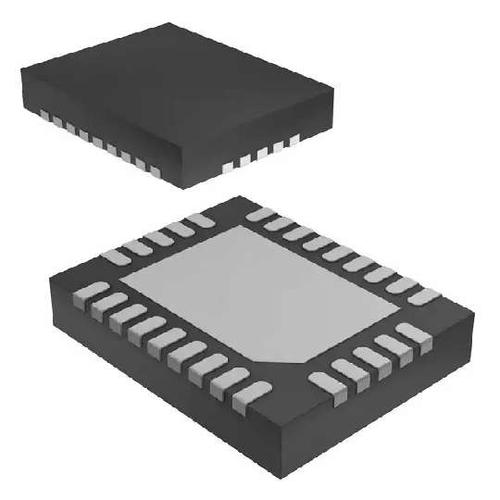

Image is for your reference only,please check specifications for details
- TPS51363RVER - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC17008604
-
Category:DC to DC Converter
-
Package:VQFN-28
-
Datasheet:Datasheet 3D Model
-
Description:Buck Switching Regulator IC Positive Adjustable (Programmable) 0.6V (1.05V, 1.2V, 1.35V, 1.5V) 1 Output 10A, 8A 28-VFQFN Exposed Pad
-
Stock Locations:
-
Availability:3,301 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.5
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS51363 is a high-voltage input, synchronous converter with integrated FET, based on D-CAP2™
- control topology, which enables fast transient response and supports both POSCAP and all MLCC output capacitors. TI proprietary FET technology combined with TI leading-edge package technology provides the highest density solution for single-output power rail such as VCCIO and VDDQ for DDR notebook memory, or any point-of-load (POL) in wide application.
- FEATURES
- • Input Voltage Range: 3 V to 22 V
- • Output Voltage Range: 0.6 V to 2 V
- • 8-A or 10-A Integrated FET Converter (see Table 1)
- • Fewest External Components
- • Soft-Start Time Programmable by External Capacitor
- • Switching Frequency: 400 kHz and 800 kHz
- • D-CAP2™ Architecture to Enable POSCAP and All MLCC Output Capacitor Usage
- • Integrated and Temperature Compensated Low-Side On-Resistance Sensing for Accurate OCL Protection
- • Powergood Output OCL, OVP, UVP and UVLO Protections
- • Thermal Shutdown (non-latch)
- • Output Discharge Function
- • Integrated Boost MOSFET Switch
- • 28-Pin, 3.5-mm × 4.5-mm, RVE, QFN Package with 0.4-mm Pitch and 1-mm Height
- APPLICATIONS
- • Notebook Computers (VCCIO)
- • Memory Rails (DDR VDDQ)
TPS51363RVER Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | VQFN-28 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 2V |
| Output Current | 10A, 8A |
| Quiescent Current | 560 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 400kHz, 800kHz |
| Topology | Buck |
| Switching Current | 8 A |
| Input Voltage (Max) | 22 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 2 V |
| Output Current (Max) | 10 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Input Voltage | 3V ~ 22V |
| Show | |
| Operating Temperature | -10℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
