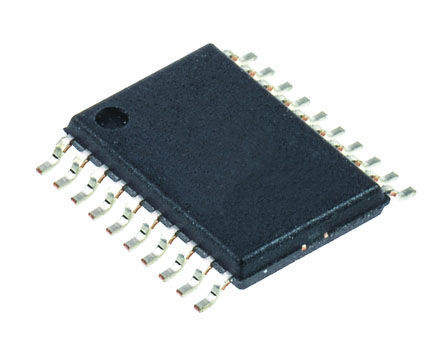

TPS54110PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC58321763
Category:
DC to DC Converter
Package:
HTSSOP-20
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator Low Input Voltage 1.5A Step Down SWIFT Converter with Adjustable Output Voltage Conv DC-DC Single Step Down 3V to 6V 20Pin HTSSOP EP Tube
Stock Locations:
Availability:
268 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54110PWP is a low-input-voltage high-output-current synchronous-buck PWM Converter integrates all required active components. Included on the substrate with the listed features are a true, high- performance, voltage error amplifier that provides high performance under transient conditions, an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3V, an internally and externally set slow-start circuit to limit in-rush currents and a power-good output useful for processor/logic reset, fault signalling and supply sequencing. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
Integrated MOSFET switches for high efficiency
Externally compensated for design flexibility
Fast transient response
Load protected by peak current limit and thermal shutdown
Integrated solution reduces board area
Green product and no Sb/Br

Show

TPS54110PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	HTSSOP-20
Supply Voltage (DC)	6.00V (max)
Number of Outputs	1 Output
Output Voltage	0.9V ~ 3.3V
Output Current	1.5 A
Number of Positions	20 Position
Quiescent Current	4.20 mA
Number of Regulated Outputs	1 Output
Switching Frequency	700 kHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	6 V
Input Voltage (Min)	3 V
Output Voltage (Max)	3.3 V
Output Voltage (Min)	900 mV
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3 V
Input Voltage	3V ~ 6V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
