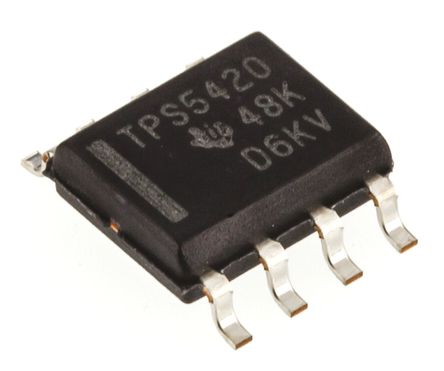

Image is for your reference only,please check specifications for details

TPS5420D - TI
Manufacturer:
TI
ManyChip's Part#:
MC8278311
Category:
Voltage Regulator
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 5.5V to 36V, 2A, 500kHz Step Down SWIFT Converter Conv DC-DC 5.5V to 36V Step Down Single-Out 1.23V to 31V 2A 8Pin SOIC Tube
Stock Locations:
Availability:
49 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.07

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS5420D is a High-output-current PWM Converter integrates a low resistance high side N-channel MOSFET. Included on the substrate with the listed features is a high performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 5.5V, an internally set slow-start circuit to limit inrush currents and a voltage feed-forward circuit to improve the transient response. Using the ENA pin, shutdown supply current is reduced to 18µA typically. Other features include an active-high enable, over-current limiting, overvoltage protection and thermal shutdown. To reduce design complexity and external component count, the TPS5420 feedback loop is internally compensated.
Up to 2A continuous (3A peak) output current
High efficiency up to 95% enabled by 110mR integrated MOSFET switch
Wide output voltage range, adjustable down to 1.22V with 1.5% initial accuracy
Internal compensation minimizes external parts count
Fixed 500kHz switching frequency for small filter size
Improved line regulation and transient response by input voltage feed forward
System protected by overcurrent limiting, over voltage protection and thermal shutdown
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS5420D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	500 kHz
Supply Voltage (DC)	36.0V (max)
Number of Outputs	1 Output
Output Voltage	1.23V ~ 31V
Output Current	2 A
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	3.00 mA
Number of Regulated Outputs	1 Output
Switching Frequency	500 kHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	36 V
Input Voltage (Min)	5.5 V
Output Voltage (Max)	31 V
Output Voltage (Min)	1.22 V
Output Current (Max)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1.5 %
Supply Voltage	5.5 V
Supply Voltage (Min)	5.5 V
Input Voltage	5.5V ~ 36V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
