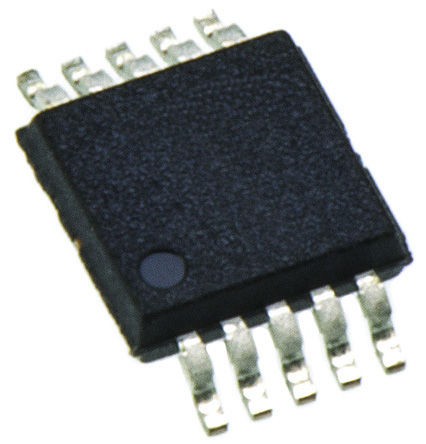

Image is for your reference only,please check specifications for details

TPS54240DGQR - TI
Manufacturer:
TI
ManyChip's Part#:
MC362008
Category:
DC to DC Converter
Package:
PowerPad-MSOP-10
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 3.5V to 42V Input, 2.5A, 2.5MHz Step-Down SWIFT Converter with Eco-Mode Conv DC-DC 3.5V to 42V Step Down Single-Out 0.8V to 39V 2.5A 10Pin HVSSOP EP T/R
Stock Locations:
Availability:
9,520 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.85

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS54240 device is a 42V, 2.5A, step down regulator with an integrated high side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 138μA. Using the enable pin, shutdown supply current is reduced to 1.3μA, when the enable pin is low.
FEATURES
• 3.5V to 42V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads with a Pulse Skipping Eco-Mode™
• 138μA Operating Quiescent Current
• 1.3μA Shutdown Current
• 100kHz to 2.5MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start/Sequencing
• UV and OV Power Good Output
• Adjustable UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• 10-Pin MSOP and 10-Pin 3mm × 3mm SON Packages with PowerPAD™
• Supported by WEBENCH™ Software Tool
APPLICATIONS
• 12-V and 24-V Industrial and Commercial Low Power Systems
• GSM, GPRS Modules in Fleet Management, E-Meters, and Security Systems

Show

TPS54240DGQR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	PowerPad-MSOP-10
Number of Outputs	1 Output
Output Voltage	0.8V ~ 39V
Output Current	2.5 A
Number of Positions	10 Position
Quiescent Current	138 µA
Number of Regulated Outputs	1 Output
Switching Frequency	100kHz ~ 2.5MHz
Input Voltage (Max)	42 V
Input Voltage (Min)	3.5 V
Output Voltage (Max)	39 V
Output Voltage (Min)	0.8 V
Output Current (Max)	2.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	3.5 V
Input Voltage	3.5V ~ 42V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
