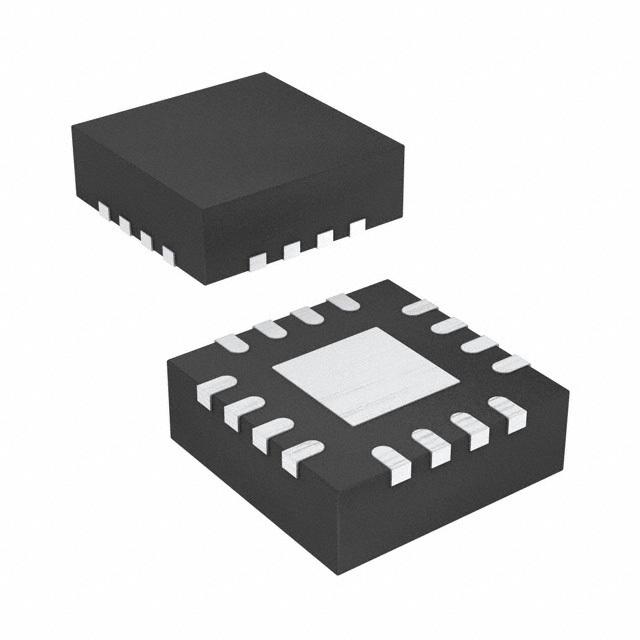

- TPS54326RGTR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC9957896
-
Category:DC to DC Converter
-
Package:VQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Step-Down Regulator 4.5V to 18V Input, 3A Synchronous Step-Down SWIFT Converter with Eco-Mode Conv DC-DC 2V to 18V Step Down Single-Out 0.76V to 5.5V 3A 16Pin VQFN EP T/R
-
Stock Locations:
-
Availability:284 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.26
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54326 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54326 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54326 uses the D-CAP2™ mode control which provides a fast transient response with no external components. The adoptive on-time control supports seamless operation between PWM mode at heavy load condition and reduced frequency Eco-mode operation at light load for high efficiency.
- The TPS54326 also has a proprietary circuit that enables the device to adapt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VCC input , and from 2-V to 18-V VIN input power supply voltage. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable slow start time and a power good function. The TPS54326 is available in the 14 pin HTSSOP or 16 pin QFN package, and designed to operate from –40°C to 85°C.
TPS54326RGTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | VQFN-16 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.76V ~ 5.5V |
| Output Current | 3 A |
| Quiescent Current | 850 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 700 kHz |
| Topology | Buck |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 2 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 0.76 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2 V |
| Input Voltage | 4.5V ~ 18V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
