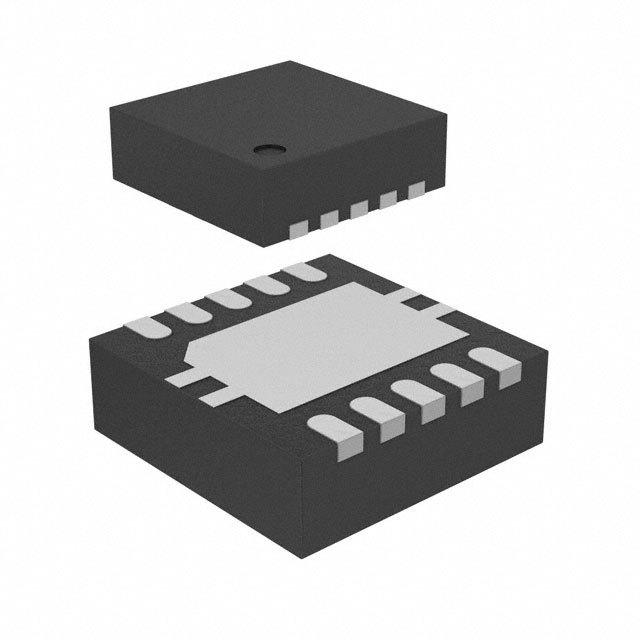

Image is for your reference only,please check specifications for details
- TPS54328DRCR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC46419863
-
Category:DC to DC Converter
-
Package:VSON-10
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 18V Step Down Single-Out 0.76V to 7V 3A 10Pin VSON EP T/R
-
Stock Locations:
-
Availability:1,500 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.43
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54328 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54328 enables system designers to complete the suite of various end-equipment power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54328 uses the D-CAP2 mode control that provides a fast transient response with no external compensation components.
- The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode operation at light loads. Eco-mode allows the TPS54328 to maintain high efficiency during lighter load conditions. The TPS54328 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V input (VIN).
- The output voltage can be programmed from 0.76 V to 7 V. The device also features an adjustable soft start time. The TPS54328 is available in 8-pin DDA and 10-pin DRC packages, and is designed to operate over the ambient temperature range of –40°C to 85°C.
TPS54328DRCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSON-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.76V ~ 7V |
| Output Current | 3 A |
| Quiescent Current | 800 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 700 kHz |
| Topology | Buck |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 7 V |
| Output Voltage (Min) | 0.76 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 4.5V ~ 18V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
