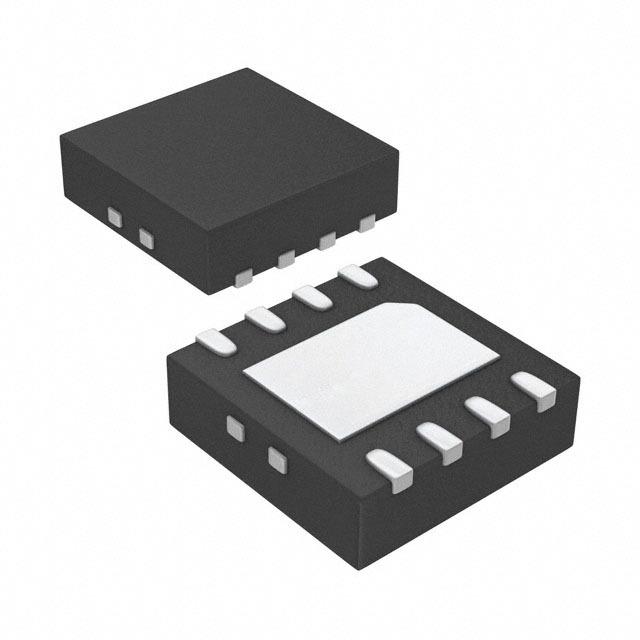

TPS61042DRBR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3587904
Category:
LED Driver, LED Display Driver
Package:
VSON EP-8
Datasheet:
Datasheet 3D Model
Description:
30V, 500mA Switch Boost Converter in QFN-8 for White LED Applications 8-SON -40℃ to 85℃
Stock Locations:
Availability:
20 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.69

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61042 is a high frequency boost converter with constant current output that drives white LEDs or similar. The LED current is set with the external sense resistor (RS) and is directly regulated by the feedback pin (FB) that regulates the voltage across the sense resistor RS to 252 mV (typ). To control LED brightness, the LED current can be pulsed by applying a PWM (pulse width modulated) signal with a frequency range of 100 Hz to 50 kHz to the control pin (CTRL). To allow higher flexibility, the device can be configured where the brightness can be controlled by an analog signal as well, as described in the _application information_ section. To avoid possible leakage currents through the LEDs during shutdown, the control pin (CTRL) disables the device and disconnects the LEDs from ground. For maximum safety during operation, the output has integrated overvoltage protection that prevents damage to the device in case of a high impedance output (e.g. faulty LED).

Show

TPS61042DRBR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON EP-8
Frequency	1 MHz
Supply Voltage (DC)	1.80V (min)
Current Rating	38 mA
Number of Outputs	1 Output
Output Voltage	27.5 V
Output Current	500 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	38.0 µA
Number of Regulated Outputs	1 Output
Output Power	370 mW
Switching Frequency	1 MHz
Topology	Boost
Input Voltage (Max)	6 V
Input Voltage (Min)	1.8 V
Output Voltage (Max)	28 V
Output Current (Max)	60 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	1.8 V
Input Voltage	1.8V ~ 6V
	Show
Size-Width	3 mm
Weight	0.0003665026592 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
