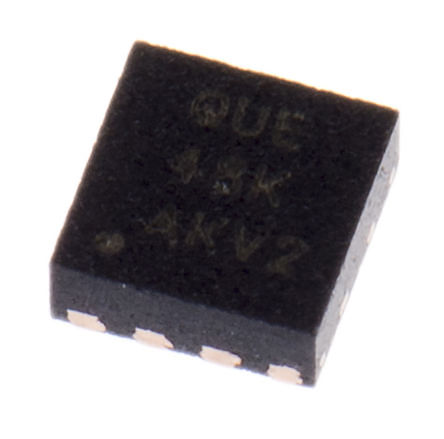

TPS715A01DRBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC2377233
Category:
Voltage Regulator
Package:
VDFN-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS715A01DRBT LDO Voltage Regulator, Adjustable, 2.5V to 24V in, 670mV drop, 1.2V to 15V/80mA out, SON-8
Stock Locations:
Availability:
239 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.74

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS715A01DRBT is a low-dropout (LDO) Voltage Regulator offers the benefits of high input voltage, low-dropout voltage and low-power operation. The device operates over an input range of 2.5 to 24V and is stable with any capacitor (>=0.47µF). The high maximum input voltage combined with excellent power dissipation capability makes this device particularly well-suited to industrial and automotive applications. A PMOS pass element functions as a low-value resistor. The low dropout voltage, typically 670mV at 80mA of load current, is directly proportional to the load current. The low quiescent current is nearly constant over the entire range of output load current (0 to 80mA). The low quiescent current makes the device ideal for powering battery management devices. Specifically, because the device is enabled as soon as the applied voltage reaches the minimum input voltage and the output is quickly available to power continuously-operating, battery-charging device.
Specified current limit
Low 3.2µA quiescent current at 80mA
Green product and no Sb/Br

Show

TPS715A01DRBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VDFN-8
Power Rating	2.5 W
Number of Outputs	1 Output
Input Voltage (DC)	24.0V (max)
Output Voltage	1.2V ~ 15V
Output Current	80 mA
Supply Current	4.2µA ~ 5.8µA
Number of Positions	8 Position
Power Dissipation	2.5 W
Quiescent Current	0.0032 mA
Output Capacitor Type	Ceramic
voltage rating	670 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	24 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	15 V
Output Voltage (Min)	1.2 V
Output Current (Max)	80 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2500 mW
Accuracy	±4 %
Input Voltage	2.5V ~ 24V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
