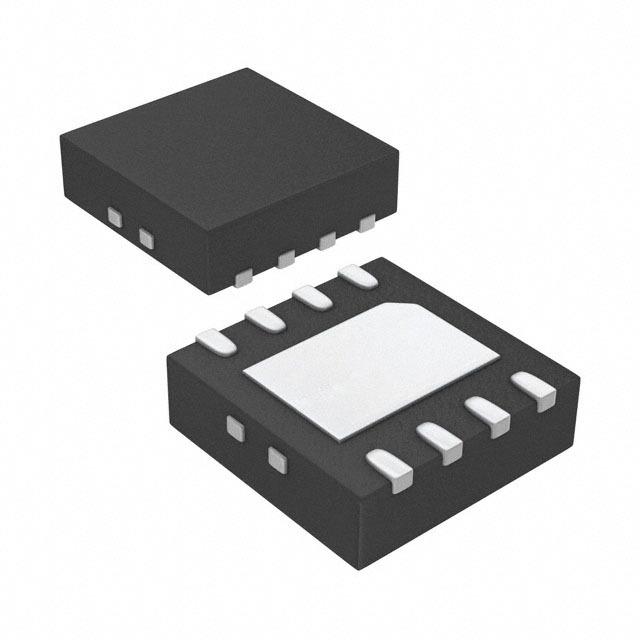

Image is for your reference only,please check specifications for details
- TPS73501DRBR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC13657266
-
Category:Voltage Regulator
-
Package:VDFN-8
-
Datasheet:Datasheet 3D Model
-
Description:Single Channel LDO Single Output LDO, 500mA, Adjustable, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.25V to 6V 0.5A 8Pin VSON EP T/R
-
Stock Locations:
-
Availability:3 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.2
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 500mA 8-SON (3x3)
TPS73501DRBR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VDFN-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.25V ~ 6V |
| Output Current | 500 mA |
| Supply Current | 65 µA |
| Power Dissipation | 2500 W |
| Quiescent Current | 0.046 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.28V @500mA |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 6.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 6 V |
| Output Voltage (Min) | 1.25 V |
| Output Current (Max) | 0.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2.5 W |
| Accuracy | ±1 % |
| Input Voltage | 2.7V ~ 6.5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.88 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
