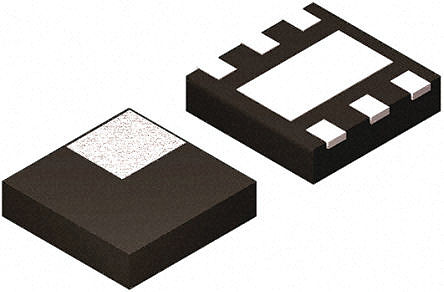

Image is for your reference only,please check specifications for details

TPS73501DRVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC25923197
Category:
Voltage Regulator
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS73501DRVT LDO Voltage Regulator, Adjustable, 2.7V to 6.5V in, 280mV drop, 1.25V to 6V/0.5A out, SON-6
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.9

Updated at 24/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS73501DRVT is a low-dropout (LDO) low-power Linear Regulator offers excellent AC performance with very low ground current. High power-supply rejection ratio, low noise, fast start-up and excellent line and load transient responses are provided while consuming a very low 46µA typical ground current. This device is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280mV at 500mA output. It combines the high performance required by many radio frequency and precision analog applications with ultra-low current consumption. High PSRR is provided by a high-gain, high-bandwidth error loop with good supply rejection and very low headroom. The device uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% over all load, line, process and temperature variations. The combination of high performance and low ground current also makes the device an excellent choice for portable applications.
Excellent load/line transient response
500mA Low-dropout regulator with EN
68dB at 1kHz High PSRR
Stable with a standard, 2.2µF, low-ESR output capacitor
Green product and no Sb/Br

Show

TPS73501DRVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Outputs	1 Output
Output Voltage	1.25V ~ 6V
Output Current	500 mA
Number of Positions	6 Position
Power Dissipation	1.54 W
Quiescent Current	46 µA
Output Capacitor Type	Ceramic
voltage rating	280 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	6 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1540 mW
Accuracy	±1 %
Input Voltage	2.7V ~ 6.5V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
