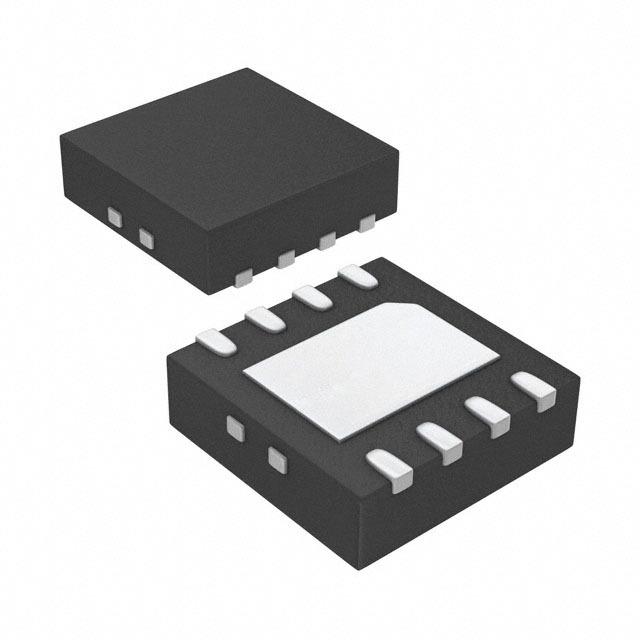

TPS73601DRBR - TI
Manufacturer:
TI
ManyChip's Part#:
MC7345253
Category:
Voltage Regulator
Package:
VDFN-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS73601DRBR LDO Voltage Regulator, Adjustable, 1.7V to 5.5V in, 75mV drop, 1.2V to 5.5V/400mA out, SON-8
Stock Locations:
Availability:
1,618 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS736xx family of low-dropout (LDO) linear voltage regulators uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. It also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current.
The TPS736xx uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1 µA and ideal for portable applications. The extremely low output noise (30 µVRMS with 0.1-µF CNR) is ideal for powering VCOs. These devices are protected by thermal shutdown and foldback current limit.

Show

TPS73601DRBR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VDFN-8
Number of Outputs	1 Output
Output Voltage	1.2V ~ 5.5V
Output Current	400 mA
Supply Current	550µA ~ 1mA
Number of Positions	8 Position
Power Dissipation	2500 W
Quiescent Current	0.3 mA
Output Capacitor Type	Ceramic
voltage rating	0.075V @400mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.7 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	1.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
