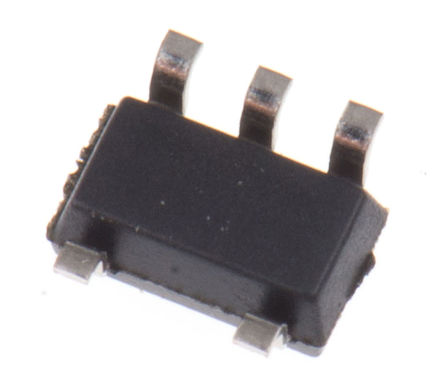

Image is for your reference only,please check specifications for details

TPS76333DBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC2952359
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS76333DBVT Fixed LDO Voltage Regulator, 2.7V to 10V, 300mV Dropout, 3.3Vout, 150mAout, SOT-23-5
Stock Locations:
Availability:
2,602 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS76333DBVT is a Low IQ 150mA Low-dropout Linear Regulator that offers the benefits of low-dropout voltage and low-power operation. This regulator features low dropout voltage and quiescent current compared to conventional LDO regulator. A combination of new circuit design and process innovation has enabled the usual PNP pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low typically 300mV at 150mA of load current and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current is very low (140µA maximum) and is stable over the entire range of output load current (0 to 150mA). Intended for use in portable systems such as laptops and cellular phones, the low-dropout voltage feature and low-power operation result in a significant increase in system battery operating life.
150mA Low-dropout regulator
Typically 300mV dropout voltage at 150mA
Thermal protection
Over-current limitation
<2µA Quiescent current in shutdown mode
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

TPS76333DBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Operating Voltage	2.7V ~ 10V
Current Rating	150 mA
Power Rating	0.555 W
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	3.3 V
Output Current	150 mA
Supply Current	100µA ~ 140µA
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	0.555 W
Quiescent Current	0.085 mA
Output Capacitor Type	Ceramic
voltage rating	300 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	150 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	555 mW
Accuracy	±3 %
Input Voltage	≤10 V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
