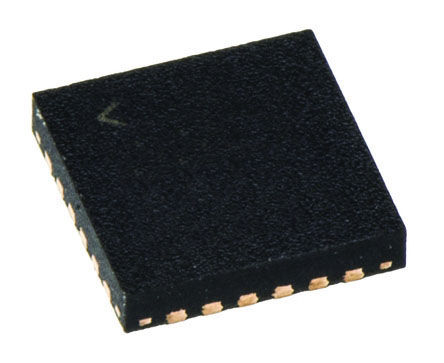

TRF370333IRGET - TI
Manufacturer:
TI
ManyChip's Part#:
MC8867068
Category:
RF Module
Package:
VQFN-24
Datasheet:
Datasheet 3D Model
Description:
350MHz to 4GHz Quadrature Modulator, 3.3V common-mode voltage 24-VQFN -40℃ to 85℃
Stock Locations:
Availability:
1,024 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.92

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TRF370315 and TRF370333 are low-noise direct quadrature modulators, capable of converting complex modulated signals from baseband or IF directly up to RF. The TRF370315 and TRF370333 are ideal for high-performance direct RF modulation from 350 MHz up to 4 GHz. These modulators are implemented as a double-balanced mixer. The RF output block consists of a differential to single-ended converter and an RF amplifier capable of driving a single-ended 50-Ω load without any need of external components. The TRF370333 and TRF370315 devices have different common-mode voltage ratings at the I/Q baseband inputs. The TRF370315 requires a 1.5-V common-mode voltage, and the TRF370333 requires a 3.3-V common-mode voltage.

Show

TRF370333IRGET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	VQFN-24
Frequency	350 MHz
Supply Voltage (DC)	4.50V (min)
Supply Current	235 mA
Number of Positions	24 Position
Output Power	9.5 dBm
Test Frequency	2.14 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	4.15 mm
Size-Width	4 mm
Size-Height	0.95 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
