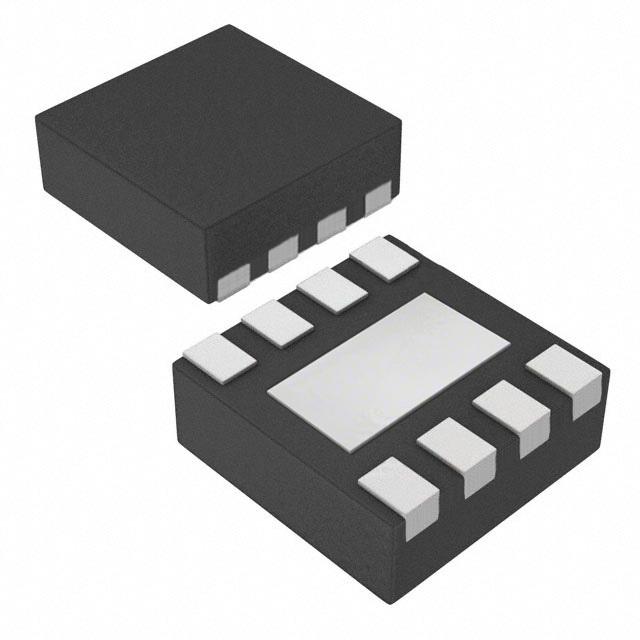

TRF37D73IDSGT - TI
Manufacturer:
TI
ManyChip's Part#:
MC6778508
Category:
Amplifier chip
Package:
WSON-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TRF37D73IDSGT RF Amplifier IC, 10dB Gain / 3.25dB Noise, 1MHz to 6GHz, 3V to 3.45V, WSON-8
Stock Locations:
Availability:
247 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.63

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TRF37D73IDSGT is a 1 to 6000MHz 20dB RF Gain Block with powerdown pin. The TRF37D73 is designed for ease of use. For maximum flexibility, this family of parts uses a common 3.3V supply and consumes 53mA. In addition, this family was designed with an active bias circuit that provides a stable and predictable bias current over process, temperature and voltage variations. For gain and linearity budgets the device was designed to provide a flat gain response and excellent OIP3 out to 6000MHz. For space constrained applications, this family is internally matched to 50R, which simplifies ease of use and minimizes needed PCB area.
16.5dBm at 2000MHz Output P1dB
28dBm at 2000MHz Output IP3
Power down mode
Stabilized performance over temperature
Unconditionally stable

Show

TRF37D73IDSGT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	8 Pin
Case/Package	WSON-8
Frequency	1MHz ~ 6GHz
Supply Voltage (DC)	3.00V (min)
Supply Current	53 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	175 mW
Output Power	27.5 dBm
Gain	10 dB
Test Frequency	2 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	175 mW
Supply Voltage	3.3 V
Supply Voltage (Max)	3.45 V
Supply Voltage (Min)	3 V
	Show
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
