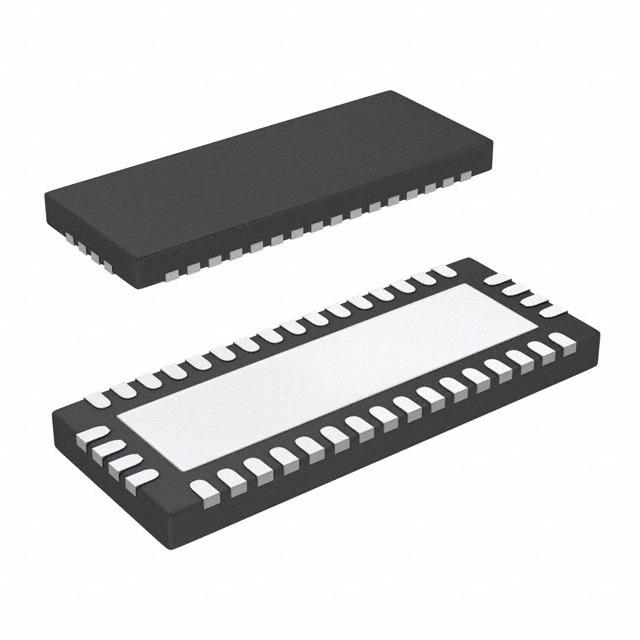

Image is for your reference only,please check specifications for details
- TS3DV642A0RUAR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC182144
-
Category:Logic Controller, Logic IC
-
Package:WQFN-42
-
Datasheet:Datasheet 3D Model
-
Description:12Channel 1:2 Mux/Demux with 1.8V Compatible Control and Power-Down Mode 42-WQFN
-
Stock Locations:
-
Availability:4,196 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS3DV642 is a 12 channel 1:2 or 2:1 bi-directional multiplexer/demultiplexer. The TS3DV642 operates from a 2.6 V to 4.5 V supply, making it suitable for battery-powered applications. It offers low and flat on-state resistance (RON) as well as low I/O capacitance which allows it to achieve a typical bandwidth of up to 7.5 GHz. The device provides the high bandwidth necessary for HDMI and DisplayPort applications.
- The TS3DV642 offers a power-down mode, in which all channels become Hi-Z and the device operates with minimal power.
TS3DV642A0RUAR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 42 Pin |
| Case/Package | WQFN-42 |
| Number of Outputs | 12 Output |
| Number of Channels | 12 Channel |
| Number of Bits | 12 Bit |
| Bandwidth | 6 MHz |
| Number of Inputs | 24 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.6V ~ 4.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
