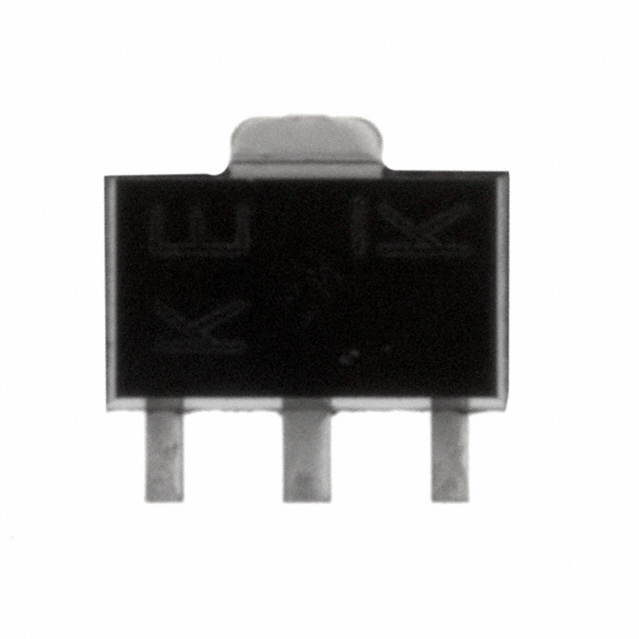

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2SK3065T100 is a 60V Silicon N-channel MOSFET with high speed switching and low on resistance.
Optimum for a pocket resource because of undervoltage actuation (2.5V actuation)
Driving circuit is easy
Easy to use and parallel
Electrostatic discharge protection

Show

2SK3065T100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Voltage Rating (DC)	60.0 V
Current Rating	2.00 A
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	250 mΩ
Polarity	N-Channel
Power Dissipation	500 mW
Threshold Voltage	800 mV
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Continuous Drain Current (Ids)	2.00 A
Rise Time	50 ns
Input Capacitance (Ciss)	160pF @10V(Vds)
Input Power (Max)	500 mW
Fall Time	70 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	500mW (Ta)
	Show
Size-Length	4.5 mm
Size-Width	2.5 mm
Size-Height	1.5 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
