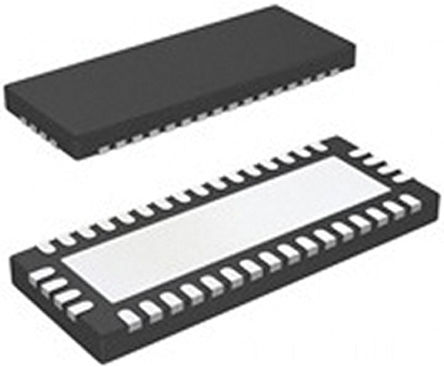

TS3L501ERUAR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1529959
Category:
Multiplexer IC
Package:
WQFN-42
Datasheet:
Datasheet 3D Model
Description:
16Bit to 8Bit Multiplexer/Demultiplexer Gigabit Ethernet LAN Switch with Power Down Mode 42-WQFN -40℃ to 85℃
Stock Locations:
Availability:
2,185 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.95

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3L501ERUAR is a 16-bit to 8-bit Multiplexer/Demultiplexer with a single select (SEL) input and Power-Down Mode input. The local area network (LAN) switch provides additional I/Os for switching status indicating LED signals and includes high ESD protection. SEL input controls the data path of the multiplexer or demultiplexer. Power-down input can put the device into the standby mode for minimizing current consumption per mode selection. The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match.
Integrated power-down mode
600MHz (typical) Wide bandwidth
Low crosstalk
Low bit-to-bit skew
Low and flat ON-state resistance
Low input/output capacitance
Rail-to-Rail switching on data I/O ports
Supports power-down mode
Latch-Up performance exceeds 100mA Per JESD 78, Class II
ESD performance (A, B, C, LED pins) ±4-kV IEC61000-4-2, contact discharge

Show

TS3L501ERUAR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	42 Pin
Case/Package	WQFN-42
Number of Outputs	8 Output
Supply Current	250 µA
Number of Circuits	8 Circuit
Number of Channels	11 Channel
Number of Positions	42 Position
Number of Bits	8 Bit
Bandwidth	600 MHz
Number of Inputs	16 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	600 MHz
Supply Voltage	3V ~ 3.6V
	Show
Size-Length	9.1 mm
Size-Width	3.6 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
