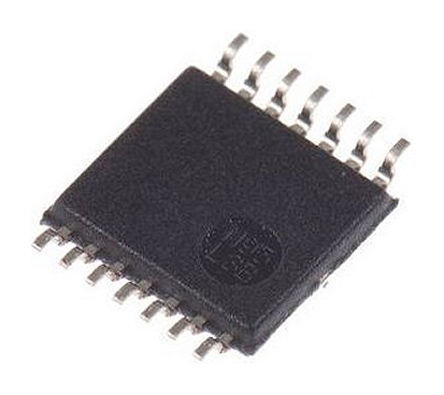

Image is for your reference only,please check specifications for details
- TS464CPT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC18834971
-
Category:Operational Amplifier, OP Amp IC
-
Package:TSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:TS464 Series 10V 12MHz Quad Output Rail-to-Rail Operational Amplifier - TSSOP-14
-
Stock Locations:
-
Availability:88 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.34
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TS46x are a family of operational amplifiers able to operate with voltages as low as ±1.35V
- and to reach a minimum of ±2Vppof output swing when supplied with ±2.5V.
- This device is well-suited for all kinds of portable and battery-supplied equipment, where low noise
- and low distortion are key requirements.
- The TS461/2/4 offer excellent output rail-to-rail performance at an attractive cost.
- ■ High dynamic features
- ■ Large output swing (±2.4V @ VCC= ±2.5V)
- ■ Low noise level: 4nV/√Hz
- ■ Low distortion: 0.003%
- ■ Operating range: 2.7V to 10V
- ■ Available in SOT23-5 micropackage
- Applications
- ■ Sound cards
- ■ PDA
- ■ CD players
- ■ Recording equipment
- ■ Multimedia
- ■ Microphone preamplifiers
TS464CPT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | TSSOP-14 |
| Supply Current | 2 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Common Mode Rejection Ratio | 60 dB |
| Slew Rate | 4.00 V/μs |
| Gain Bandwidth Product | 12 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 200 nA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Gain Bandwidth | 12 MHz |
| Minimum CMRR Range | 60 dB |
| Supply Voltage | 2.7V ~ 10V |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -20℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
