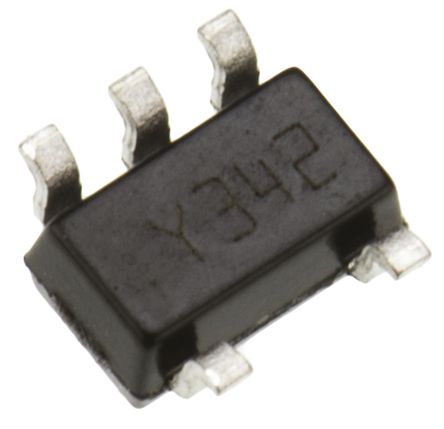

Image is for your reference only,please check specifications for details

TSC101BILT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2451037
Category:
Amplifier, Buffer IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TSC101BILT Current Sense Amplifier, High Side, 1 Amplifier, 8μA, SOT-23, 5Pins, -40℃, 125℃
Stock Locations:
Availability:
321 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.94

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSC101BILT is a high-side Current Sense Amplifier for use with photovoltaic systems. The TSC101 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is internally fixed. The input common-mode and power supply voltages are independent. The common-mode voltage can range from 2.8 to 30V in operating conditions and up to 60V in absolute maximum rating conditions. The current consumption below 300µA and the wide supply voltage range enable the power supply to be connected to either side of the current measurement shunt with minimal error.
Wide input common-mode voltage range
Low quiescent current
Independent supply and input common-mode voltages
Buffered output
-0.3 to 60V (load-dump) Wide common-mode surviving range
300µA Low current consumption

Show

TSC101BILT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	4.00V (min)
Supply Current	165 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	105 dB
Bandwidth	500 kHz
Slew Rate	900 mV/μs
Input Offset Voltage	1.5 mV
Input Bias Current	8 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	670 kHz
Gain Bandwidth	670 kHz
Minimum CMRR Range	90 dB
Supply Voltage	4V ~ 24V
Supply Voltage (Max)	24 V
Supply Voltage (Min)	4 V
	Show
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
