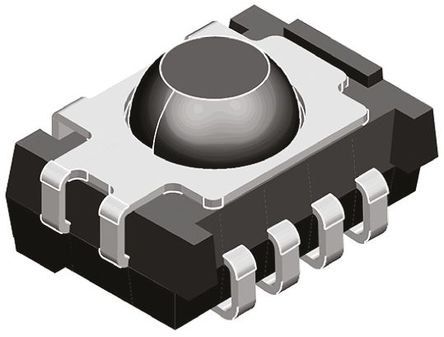

Image is for your reference only,please check specifications for details
- TSSP6038TT - Vishay Semiconductor
-
Manufacturer:Vishay Semiconductor
-
ManyChip's Part#:MC41447982
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:VISHAY TSSP6038TT Infrared Receiver, Remote Control, 38kHz, 25m, 50°, 5.5V, 2.5V, -25℃
-
Stock Locations:
-
Availability:266 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.82
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TSSP6038TT is a compact IR Receiver Module for remote control systems. It receives 38kHz carrier frequency modulated signals and has a peak sensitivity of 940nm.
- Up to 2m for presence sensing
- Low supply current
- Shielding against EMI
- Visible light is suppressed by IR filter
- Insensitive to supply voltage ripple and noise
TSSP6038TT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD |
| Supply Voltage (DC) | 2.50V (min) |
| Output Current | 5 mA |
| Supply Current | 700 µA |
| Number of Positions | 4 Position |
| Power Dissipation | 10 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 2.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.5 V |
| Show | |
| Size-Length | 7.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 2.9 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
