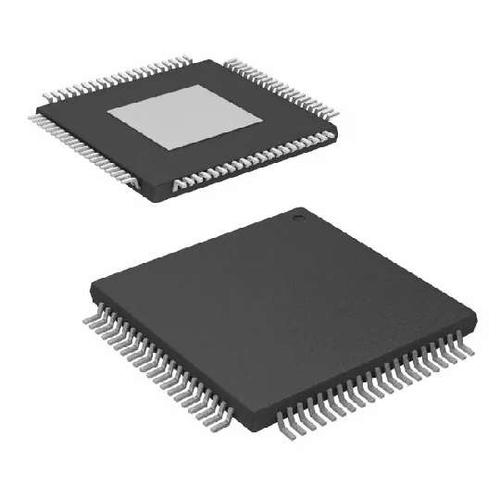

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Video Decoder IC Monitors, TV 80-HTQFP (12x12)
TVP5146M2PFP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 80 Pin |
| Case/Package | HTQFP-80 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Channels | 4 Channel |
| Number of Positions | 80 Position |
| Number of Bits | 10 Bit |
| Power Dissipation | 730 mW |
| Sample Rate | 30.0 MHz |
| Number of ADCs | 4 ADC |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 730 mW |
| Number of Input Channels | 4 Channel |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 12 mm |
| Size-Width | 12 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
