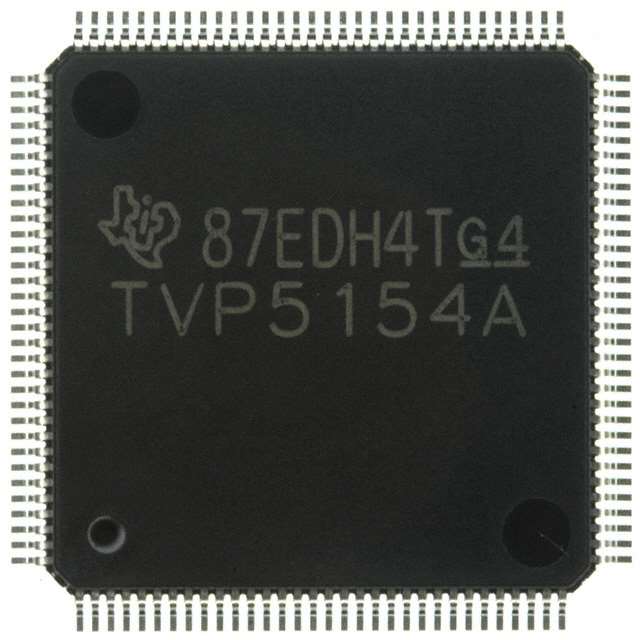

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TVP5158PNP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	128 Pin
Case/Package	TQFP-128
Supply Voltage (DC)	1.65V (min)
Number of Positions	128 Position
Number of Bits	10 Bit
Power Dissipation	643 mW
Number of ADCs	5 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	643 mW
Number of Input Channels	4 Channel
Supply Voltage (Max)	1.95 V
Supply Voltage (Min)	1.65 V
	Show
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
