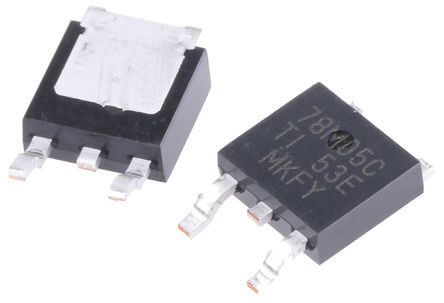

Image is for your reference only,please check specifications for details

UA78M05CKVURG3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC10264326
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UA78M05CKVURG3 Linear Voltage Regulator, 7805, Fixed, 7V To 25V In, 5V And 0.5A Out, TO-252-3
Stock Locations:
Availability:
259 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.56

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UA78M05CKVURG3 is a 3-pin 500mA Fixed 5V Positive Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator can deliver up to 500mA of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make them immune to overload. In addition to use as fixed-voltage regulators, this device can be used with external components to obtain adjustable output voltages and current and also can be used as the power-pass element in precision regulator.
3-terminal regulator
No external components
Internal thermal-overload protection
High power-dissipation capability
Internal short-circuit current limiting
Output transistor safe-area compensation
Output capacitor not needed for stability
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

UA78M05CKVURG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Input Voltage (DC)	25.0V (max)
Output Voltage	5 V
Output Current	500 mA
Number of Positions	3 Position
Quiescent Current	4.50 mA
Output Capacitor Type	Capacitor Free
voltage rating	2V @350mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	25 V
Input Voltage (Min)	7 V
Output Voltage (Min)	5 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	7V ~ 25V
	Show
Size-Length	6.17 mm
Size-Width	6.27 mm
Size-Height	2.03 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
