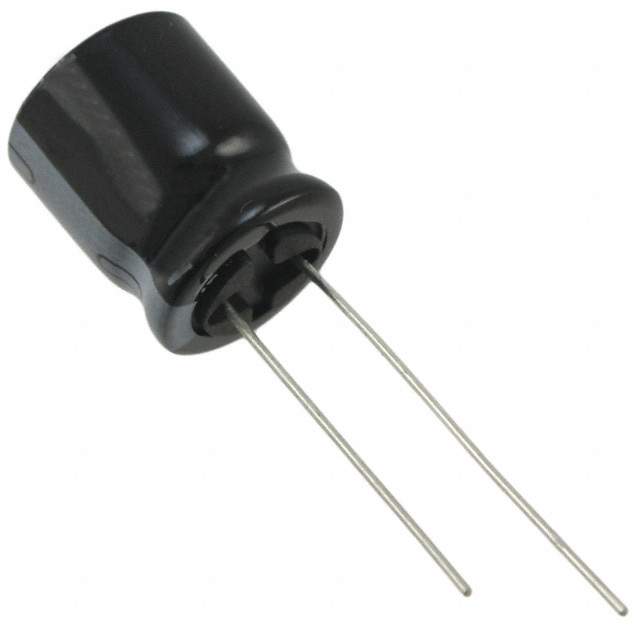

Image is for your reference only,please check specifications for details

UHE1H271MHD6 - Nichicon
Manufacturer:
Nichicon
ManyChip's Part#:
MC50232703
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
270uF ±20% 50V 1260mA(100kHz)1260mA Φ12.5mm
Stock Locations:
Availability:
247 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.49

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

By using pure aluminum foil in the anode, this electrolytic UHE1H271MHD6 aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 15 mm tall with a diameter of 12.5 mm. It has a tolerance of 20%. Its leakage current is 135@2Min μA. Its capacitance value is 270uF. The UHE1H271MHD6 aluminum electrolytic capacitor has a radial termination style.

Show

UHE1H271MHD6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	5 mm
Voltage Rating (DC)	50 V
Capacitance	270 µF
Equivalent Series Resistance (ESR)	200 mΩ
Capacitance Tolerance	±20 %
Part Family	UHE
Ripple Current	1260 mA
Ripple Current (Low Frequency)	882mA @120Hz
Ripple Current (High Frequency)	1.26A @100kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 V
	Show
Size-Length	15 mm
Size-Height	15 mm
Size-Diameter	12.5 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1200
Life (Hours)	10000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
