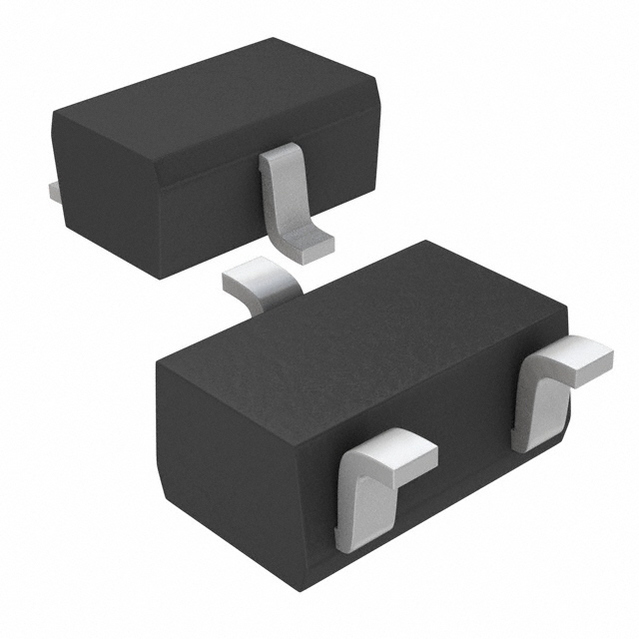

Image is for your reference only,please check specifications for details
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- UMZ16N Series 16 V 0.1 uA 200 mW Surface Mount Zener Diode - SOT-323
UMZ16NT106 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-323-3 |
| Number of Contacts | 3 Contact |
| Voltage Rating (DC) | 16.0 V |
| Power Rating | 200 mW |
| Power Dissipation | 200 mW |
| Test Current | 5 mA |
| Zener Voltage | 16 V |
| Input Power (Max) | 200 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.9 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
