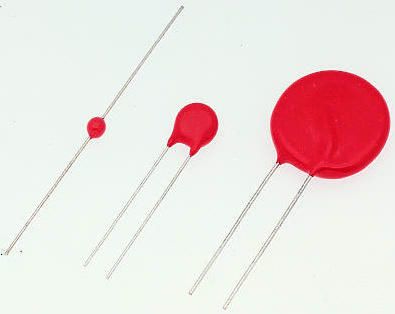

Image is for your reference only,please check specifications for details
- V68ZA10P - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC38881270
-
Category:Varistor
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE V68ZA10P TVS варистор, MOV, 40В, 56В, серия ZA, 135В, диск 14 мм, металлооксидный варистор (MOV)
-
Stock Locations:
-
Availability:367 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.11
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Серия ZA подавителей переходных перенапряжений представляет собой варисторы с радиальными выводами (MOV), предназначенные для защиты цепей и систем низкого и среднего напряжения. Типичные области применения включают цепи управления двигателями, телекоммуникации, автомобильные системы, соленоиды и источники питания для защиты компонентов печатных плат и сохранения целостности данных. Эти устройства доступны в пяти типоразмерах: 5 мм, 7 мм, 10 мм, 14 мм и 20 мм, и имеют широкий диапазон напряжения постоянного тока от 5,5 В до 615 В.
- **Особенности:**
- * Средняя рассеиваемая мощность переходных процессов не превышает 0,2 Вт, 0,25 Вт, 0,4 Вт, 0,6 Вт или 1 Вт для типоразмеров 5 мм, 7 мм, 10 мм, 14 мм и 20 мм соответственно
- * Варисторы серии ZA внесены в список UL под номером E135010 как компонент, признанный UL
- * Не содержит галогенов
V68ZA10P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Voltage Rating (DC) | 56 V |
| Voltage Rating (AC) | 40 V |
| Operating Voltage | 68.00 VDC |
| Current Rating | 1 mA |
| Insulation Resistance | 1000 MΩ |
| Capacitance | 0.00387 µF |
| Number of Circuits | 1 Circuit |
| Clamping Voltage | 135 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (DC Max) | 56 V |
| Voltage Rating (AC Max) | 40 V |
| Show | |
| Size-Width | 5.6 mm |
| Size-Height | 20 mm |
| Lead Length | 25.4 mm |
| Size-Thickness | 5.6 mm |
| Operating Temperature | -55℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
