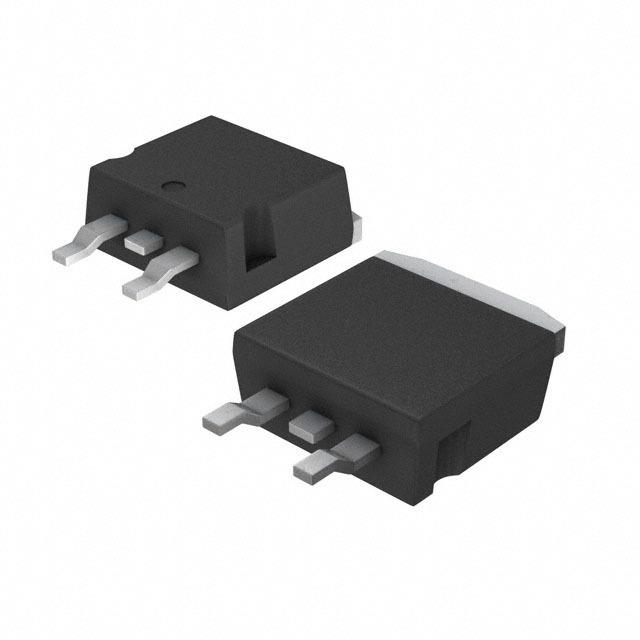

VNB20N07 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC170467477
Category:
Switching Power Supply, Power Switch
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
Power Switch Lo Side 1Out 14A 0.07Ω Automotive 3Pin(2+Tab) D2PAK Tube
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The VNP20N07FI, VNB20N07 and VNV20N07 are monolithic devices made using STMicroelectronics VlPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin.
■ LINEAR CURRENT LIMITATION
■ THERMAL SHUT DOWN
■ SHORT CIRCUIT PROTECTION
■ INTEGRATED CLAMP
■ LOW CURRENT DRAWN FROM INPUT PIN
■ DIAGNOSTIC FEEDBACK THROUGH INPUT PIN
■ ESD PROTECTION
■ DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING)
■ COMPATIBLE WITH STANDARD POWER MOSFET

Show

VNB20N07 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	70.0 V
Current Rating	20.0 A
Number of Outputs	1 Output
Drain to Source Resistance (on) (Rds)	50.0 mΩ
Polarity	N-Channel
Power Dissipation	83.0 W
Breakdown Voltage (Drain to Source)	70.0 V
Continuous Drain Current (Ids)	10.0 A
Output Current (Max)	14 A
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
