Description

The XF2M series from Omron is a 0.5mm pitch rotary backlock connector. Rotary lock achieves high reliability and superior work efficiency. It has double-sided (upper and lower) contact structure that enables component reductions and is applicable FPC thickness of 0.3mm.
Number of contacts varies from 6 to 60
Rated current is 0.5A
Rated voltage is 50V AC/DC
Maximum contact resistance is 50mohm
LCP resin housing
Copper alloy with gold plated contacts

Show

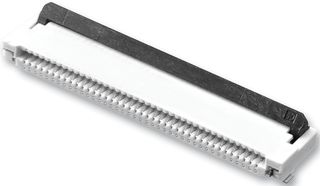

XF2M40151A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Pin Pitch	500 µm
Number of Contacts	40 Contact
Gender	Male
Contact Plating	Gold
Voltage Rating (DC)	50.0 V
Voltage Rating (AC)	50.0 V
Current Rating	0.5 A
Insulation Resistance	100 MΩ
Number of Rows	2 Row
Number of Positions	40 Position
Number of Mating Cycles	20 Cycle
Current Rating (Max)	0.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Maximum Contact Resistance (Max)	50 mΩ
	Show
Size-Height	2.1 mm
Housing Color	Natural
Contact Material	Copper
Operating Temperature	-30℃ ~ 85℃
Housing Material	Plastic
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
