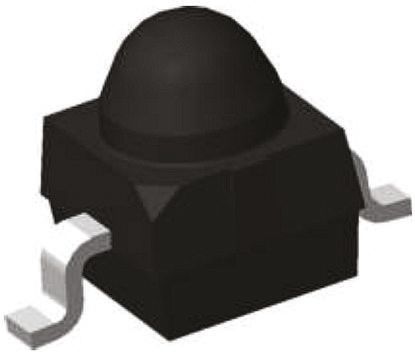

- TSML1020 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC414050
-
Category:LED
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Infrared (IR) Emitter 940nm 1.2V 100mA 3mW/sr @ 20mA 24° 2-SMD, Gull Wing
-
Stock Locations:
-
Availability:606 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.53
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TSML1020 is a 940nm Infrared Emitting Diode in GaAlAs multi quantum well (MQW) technology. It is moulded in a clear, untinted plastic package (with lens) for surface mounting (SMD).
TSML1020 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD-2 |
| Supply Voltage (DC) | 1.80 V |
| Voltage Rating (DC) | 1.20 V |
| Operating Voltage | 1.3V ~ 1.5V |
| Rise/Fall Time | 0.8 µs |
| Number of Positions | 2 Position |
| Forward Voltage | 1.2 V |
| Wavelength | 940 nm |
| Viewing Angle | 12° |
| Peak Wavelength | 950 nm |
| Power Dissipation | 190 W |
| Rise Time | 800 ns |
| Test Current | 20 mA |
| Forward Current | 20 mA |
| Maximum Forward Voltage (Max) | 1.2 V |
| Forward Current (Max) | 100 mA |
| Fall Time | 800 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 190 mW |
| Show | |
| Size-Height | 2.7 mm |
| Lead Length | 300 µm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
