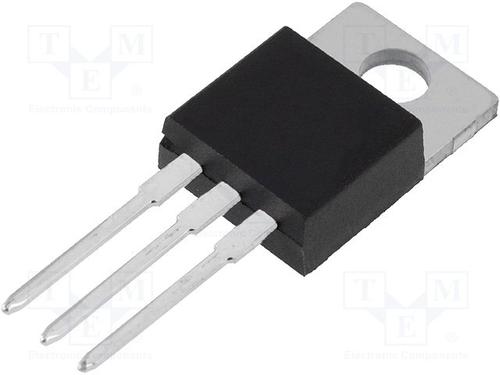

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

8 AMPERE POWER TRANSISTORS COMPLEMENTARY SILICON 120−150 VOLTS, 50 WATTS
MJE15028, MJE15030 (NPN)
MJE15029, MJE15031 (PNP)
These devices are designed for use as high−frequency drivers in audio amplifiers.
Features
•DC Current Gain Specified to 4.0 Amperes
hFE= 40 (Min) @ IC= 3.0 Adc
= 20 (Min) @ IC= 4.0 Adc
•Collector−Emitter Sustaining Voltage
VCEO(sus)= 120 Vdc (Min); MJE15028, MJE15029
= 150 Vdc (Min); MJE15030, MJE15031
•High Current Gain − Bandwidth Product
fT= 30 MHz (Min) @ IC= 500 mAdc
•TO−220AB Compact Package
•Pb−Free Packages are Available

Show

MJE15030 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Frequency	30 MHz
Voltage Rating (DC)	150 V
Current Rating	8.00 A
Power Dissipation	50 W
Breakdown Voltage (Collector to Emitter)	150 V
hFE Min	20 @4A, 2V
Input Power (Max)	50 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
