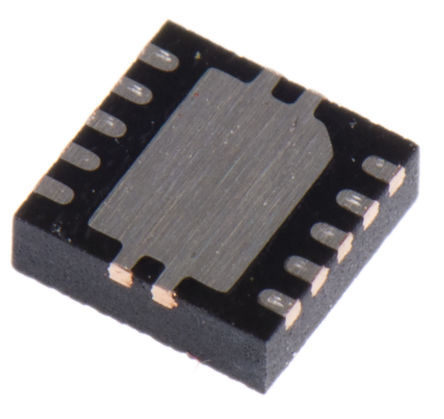

XTR111AIDRCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC736940
Category:
Active Chip
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS XTR111AIDRCT Special Function IC, Voltage to Current Converter / Transmitter, 7V to 44V, SON-10
Stock Locations:
Availability:
16 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.64

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The XTR111AIDRCT is a Precision Voltage-to-Current Converter/Transmitter, designed for the standard 0 to 20mA or 4 to 20mA analogue signals and can source up to 36mA. The ratio between input voltage and output current is set by the single resistor RSET. The circuit can also be modified for voltage output. An external P-MOSFET transistor ensures high output resistance and a broad compliance voltage range that extends from 2V below the supply voltage, VVSP, to voltages well below GND. The adjustable 3 to 15V sub-regulator output provides the supply voltage for additional circuitry.
Easy-to-design input/output ranges - 0 to 20, 4 to 20, 5 to 25mA and voltage outputs
0.002% Nonlinearity
1µV/°C Low offset drift
0.015% Accuracy
Single-supply operation
Output error flag (EF)
Output disable (OD)
3 to 15V Adjustable voltage regulator
