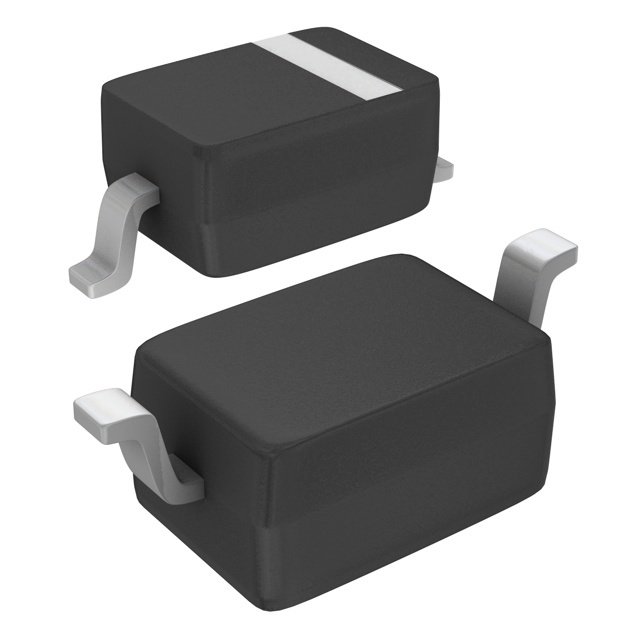

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZLLS410TA is a low leakage Schottky Diode with matte tin-plated terminals and UL94V-0 flammability-rated moulded plastic case. The Schottky diode offers users an excellent performance combination comprising high current operation, extremely low leakage and low forward voltage ensuring suitability for applications requiring efficient operation at higher temperature.

Show

ZLLS410TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Number of Positions	2 Position
Forward Voltage	380mV @100mA
Power Dissipation	0.33 W
Reverse recovery time	3 ns
Forward Current	750 mA
Max Forward Surge Current (Ifsm)	17 A
Maximum Forward Voltage (Max)	580 mV
Forward Current (Max)	0.75 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	390 mW
	Show
Size-Length	1.8 mm
Size-Width	1.4 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
