Description

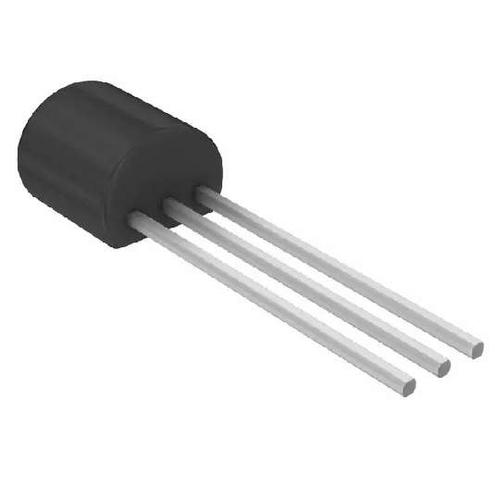

The ZVP0545A is a -450V E-Line P-channel Enhancement Mode Vertical DMOS FET with 150R resistance and 700mW power dissipation.

Show

ZVP0545A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Voltage Rating (DC)	-450 V
Current Rating	-45.0 mA
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	150 Ω
Polarity	P-Channel
Power Dissipation	700 mW
Input Capacitance	120 pF
Drain to Source Voltage (Vds)	450 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	45.0 mA
Rise Time	15 ns
Input Capacitance (Ciss)	120pF @25V(Vds)
Input Power (Max)	700 mW
Fall Time	20 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	700mW (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
