Description

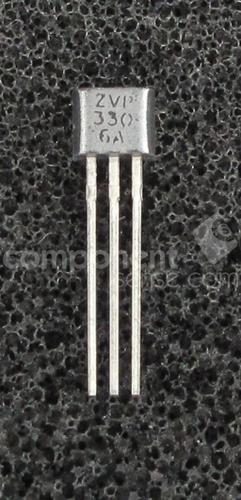

- The ZVP3306A is a P-channel enhancement mode Vertical DMOS FET.
- AEC-Q101 Qualified
ZVP3306A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-92-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -160 mA |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 14 Ω |
| Polarity | P-Channel |
| Power Dissipation | 625 mW |
| Threshold Voltage | 3.5 V |
| Input Capacitance | 50.0 pF |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 160 mA |
| Rise Time | 8 ns |
| Input Capacitance (Ciss) | 50pF @18V(Vds) |
| Input Power (Max) | 625 mW |
| Fall Time | 8 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 625mW (Ta) |
| Show | |
| Size-Length | 4.77 mm |
| Size-Width | 2.41 mm |
| Size-Height | 4.01 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
