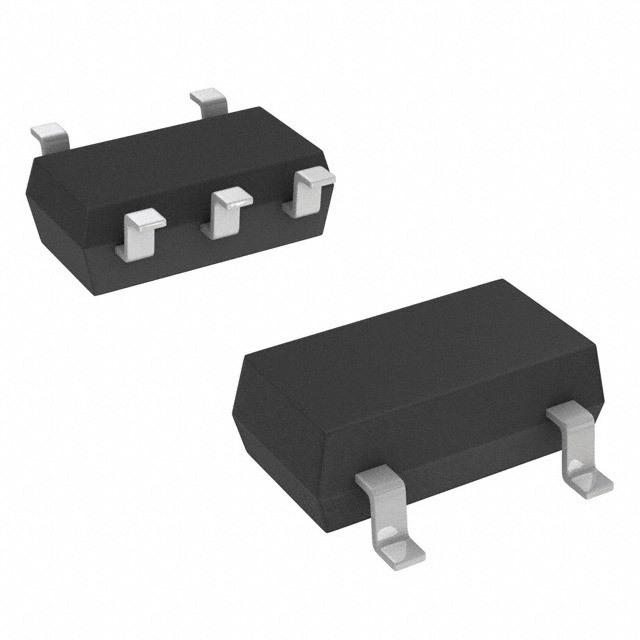

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZXCT1022E5TA is a Low Offset High-side Current Monitor used to eliminate the need to disrupt the ground plane when sensing a load current. It provides a fixed gain of 100 for applications where minimal sense voltage is required. The very low offset voltage enables a typical accuracy of 3% for sense voltages of only 10mV, giving better tolerances for small sense resistors necessary at higher currents. The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. A minimum operating current of just 25µA make it suitable for portable battery equipment too.

Show

ZXCT1022E5TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Frequency	2 MHz
Supply Voltage (DC)	20.0 V, 20.0 V (max)
Power Rating	450 mW
Number of Outputs	1 Output
Number of Positions	5 Position
Input Current	100 nA
Power Dissipation	450 mW
Quiescent Current	25 µA
Number of Regulated Outputs	1 Output
Bandwidth	300 kHz
Input Voltage (Max)	20 V
Input Voltage (Min)	2.5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Accuracy	±3 %
Supply Voltage	2.5.20 VDC
Supply Voltage (Max)	20 V
Supply Voltage (Min)	2.5 V
Input Voltage	2.5V ~ 20V
	Show
Size-Length	3.1 mm
Size-Width	1.6 mm
Size-Height	1.3 mm
Weight	0.0004799007592 kg
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
