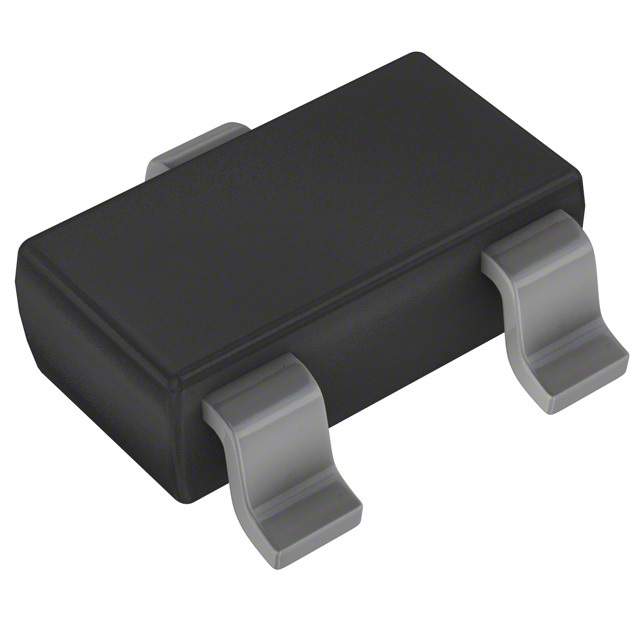

- N-Channel 20V 4.1A (Ta) 960mW (Ta) Surface Mount SOT-23-3
ZXMN2F30FHTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Drain to Source Resistance (on) (Rds) | 0.045 Ω |
| Polarity | N-Channel |
| Power Dissipation | 960 mW |
| Threshold Voltage | 900 mV |
| Drain to Source Voltage (Vds) | 20 V |
| Continuous Drain Current (Ids) | 4.90 A |
| Rise Time | 5.6 ns |
| Input Capacitance (Ciss) | 452pF @10V(Vds) |
| Input Power (Max) | 960 mW |
| Fall Time | 10.2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 960mW (Ta) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
