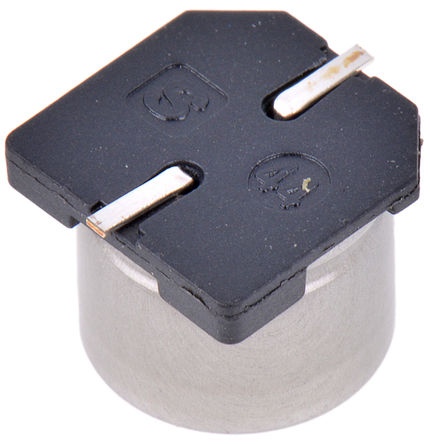

Image is for your reference only,please check specifications for details

10SVP120M - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC1149808
Category:
Capacitor
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Polymer 120uF 10VDC 20% (8 X 6.9mm) SMD 0.035Ω 2560mA 2000H 105℃ T/R
Stock Locations:
Availability:
279 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.58

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Cap Aluminum Polymer 120uF 10VDC 20% (8 X 6.9mm) SMD 0.035 Ohm 2560mA 2000h 105°C T/R

Show

10SVP120M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Voltage Rating (DC)	10.0 V
Capacitance	120 µF
Equivalent Series Resistance (ESR)	0.035 Ω
Capacitance Tolerance	±20 %
Ripple Current	2560 mA
Ripple Current (Low Frequency)	128mA @120Hz
Ripple Current (High Frequency)	2.56A @100kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	10 V
	Show
Size-Height	6.9 mm
Size-Diameter	8.00 mm
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
Life (Hours)	2000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8532220020
ECCN Code	EAR99
