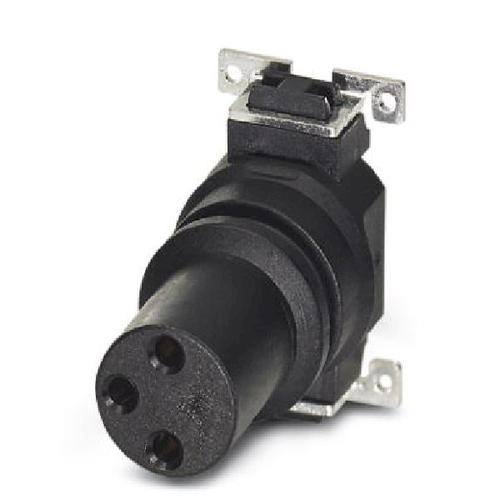

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Conn M8 Circular SKT 3 POS Solder ST SMD 3 Terminal 1 Port Belt
1412243 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Contacts | 3 Contact |
| Insulation Resistance | 100 MΩ |
| Number of Positions | 3 Position |
| Number of Mating Cycles | 100 Cycle |
| Current Rating (Max) | 3 A |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (Max) | 50 VAC |
| Voltage Rating | 50VAC, 60VDC |
| Show | |
| Size-Height | 17 mm |
| Contact Material | Brass |
| Operating Temperature | -25℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
