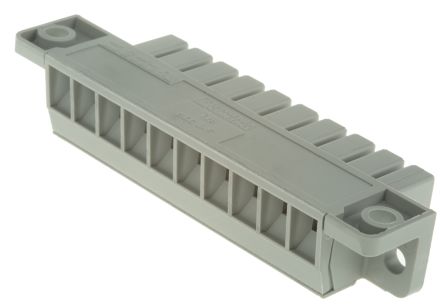

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Conn Terminal Block F 10 POS 7mm Screw RA Panel Mount 25A
1600001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Pin Pitch | 7.00 mm |
| Number of Contacts | 10 Contact |
| Wire Gauge | 10AWG ~ 30AWG |
| Current Rating | 25 A |
| Number of Rows | 1 Row |
| Number of Circuits | 10 Circuit |
| Flammability Rating | UL 94 V-2 |
| Number of Positions | 10 Position |
| Mounting Angle | 90.0 ° |
| Current Rating (Max) | 25 A |
| Voltage Rating (Max) | 500 V |
| Voltage Rating | 500 V |
| Operating Voltage (Max) | 500 V |
| Show | |
| Size-Length | 31.5 mm |
| Size-Width | 92 mm |
| Size-Height | 18 mm |
| Housing Color | Gray |
| Color | Gray |
| Material | Nylon |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
