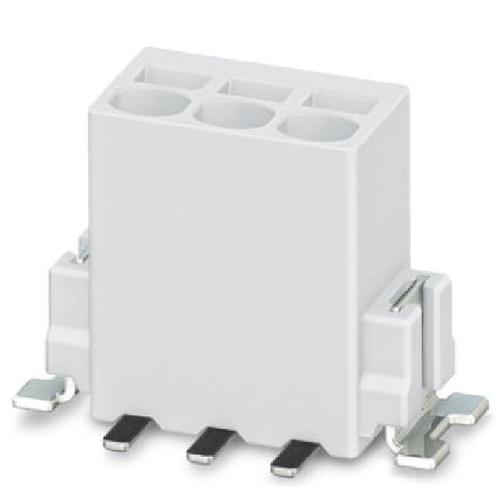

Image is for your reference only,please check specifications for details
- 1814760 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC88916393
-
Category:Connector, Adapter
-
Datasheet:Datasheet 3D Model
-
Description:Разъем; Клеммный блок; Печатная плата; SMD; Шаг 2,5 мм; 8 полюсов; Пружинный зажим; Верхний ввод провода; Белый; 6 А; 250 В
-
Stock Locations:
-
Availability:395 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.57
Updated at 20/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Фиксированные миниатюрные разъемы — для применений с устройствами поверхностного монтажа
- **Особенности:
- **
- * PTSM — наименьшее фиксированное изделие с пружинным зажимом на рынке
- * Доступен как для монтажа в отверстия с оплавлением, так и для истинного поверхностного монтажа
- * Выводы параллельны или перпендикулярны печатной плате
- * 5 А и 150 В
1814760 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Contacts | 8 Contact |
| Wire Gauge | 20AWG ~ 26AWG |
| Contact Plating | Tin |
| Current Rating | 6 A |
| Number of Rows | 1 Row |
| Number of Circuits | 8 Circuit |
| Number of Positions | 8 Position |
| Current Rating (Max) | 6 A |
| Voltage Rating (Max) | 160 V |
| Voltage Rating | 150 V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 25.1 mm |
| Size-Height | 9 mm |
| Housing Color | White |
| Color | White |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
