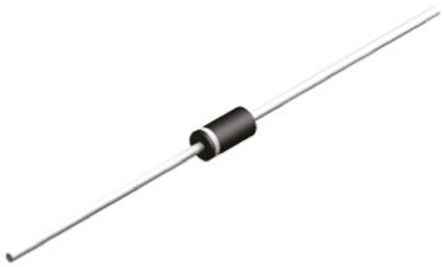

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This is a complete series of 3 W Zener diodes with limits and excellent operating characteristics that reflect the superior capabilities of silicon−oxide passivated junctions. All this in an axial−lead,
- transfer−molded plastic package that offers protection in all common environmental conditions.
- Features
- •Zener Voltage Range − 3.3 V to 200 V
- •ESD Rating of Class 3 (>16 KV) per Human Body Model
- •Surge Rating of 98 W @ 1 ms
- •Maximum Limits Guaranteed on up to Six Electrical Parameters
- •Package No Larger than the Conventional 1 W Package
- •Pb−Free Packages are Available
1N5927BRLG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-41-2 |
| Voltage Rating (DC) | 6.20 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 3.00 W |
| Halogen Free Status | Halogen Free |
| Number of Positions | 2 Position |
| Forward Voltage | 1.5V @200mA |
| Power Dissipation | 3 W |
| Test Current | 31.2 mA |
| Zener Voltage | 12 V |
| Maximum Forward Voltage (Max) | 1.5V @200mA |
| Input Power (Max) | 3 W |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 3 W |
| Show | |
| Size-Length | 5.2 mm |
| Size-Height | 5.2 mm |
| Operating Temperature | -65℃ ~ 200℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
