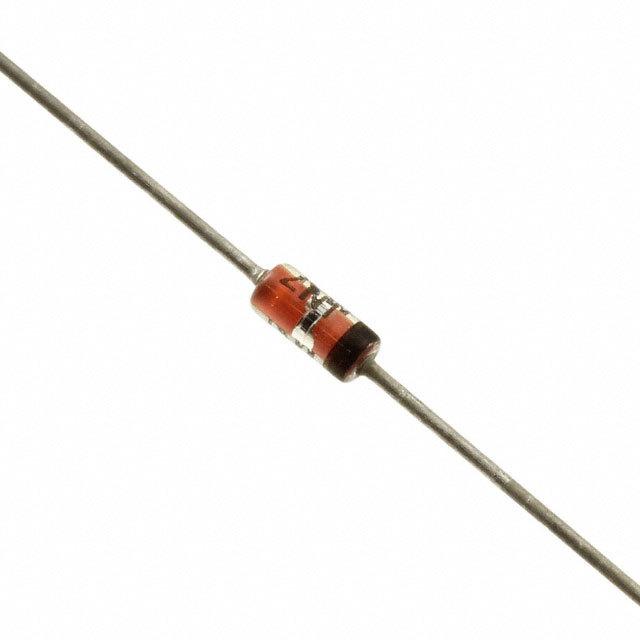

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- • 1N935B-1, 1N937B-1 AND 1N938B-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/156
- • 9.0 VOLT NOMINAL ZENER VOLTAGE
- • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
- • METALLURGICALLY BONDED
1N936A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-35-2 |
| Power Dissipation | 500 mW |
| Test Current | 7.5 mA |
| Zener Voltage | 9 V |
| Input Power (Max) | 500 mW |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Size-Length | 4.57 mm |
| Operating Temperature | -65℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status |
